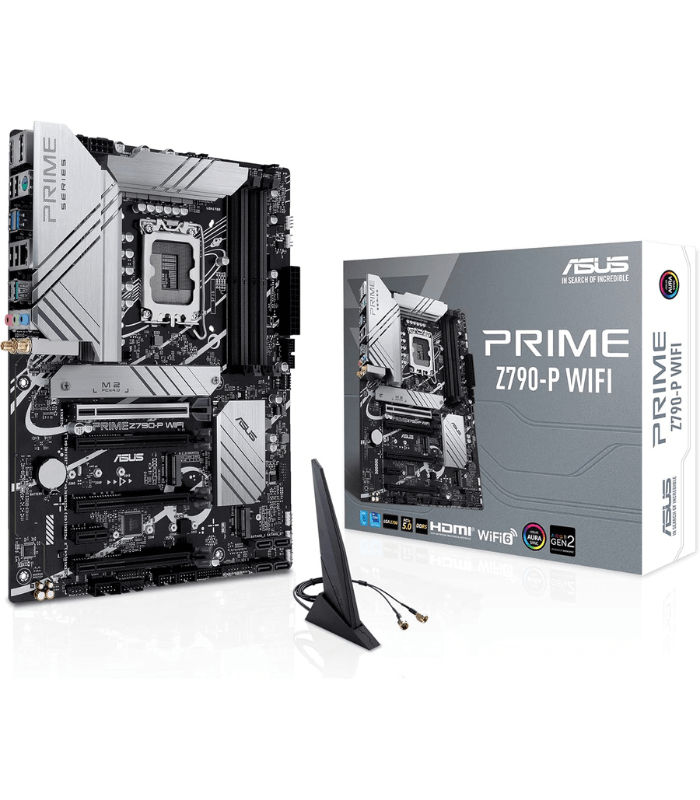

Asus Prime Z790-P WiFi Motherboard (90MB1CJ0-M1EAYO)

ASUS Prime Z790-P WiFi Motherboard (90MB1CJ0-M1EAYO)

Power, Precision, Future-Proofing – Unleash the Full Potential of Intel’s Latest Processors

Description:

Engineered for performance enthusiasts and creators, the ASUS Prime Z790-P WiFi motherboard combines cutting-edge technology with robust reliability to form the backbone of your high-end PC build. Built for 12th, 13th, and 14th Gen Intel® Core™ processors (LGA 1700 socket), this ATX powerhouse delivers unparalleled speed, expansive connectivity, and advanced thermal management. Whether you’re gaming, streaming, or tackling intensive workloads, the Prime Z790-P WiFi ensures seamless multitasking, ultra-fast data transfers, and rock-solid stability.

Key Features:

1. Intel Z790 Chipset:
   • Next-Gen Performance: Supports 12th–14th Gen Intel® Core™, Pentium® Gold, and Celeron® processors.
   • PCIe 5.0 Ready: Future-proof x16 slot for next-gen GPUs and NVMe SSDs with double the bandwidth of PCIe 4.0.

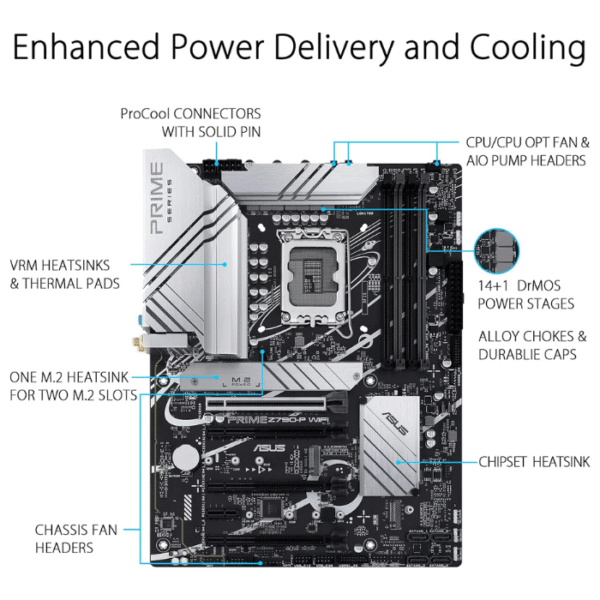

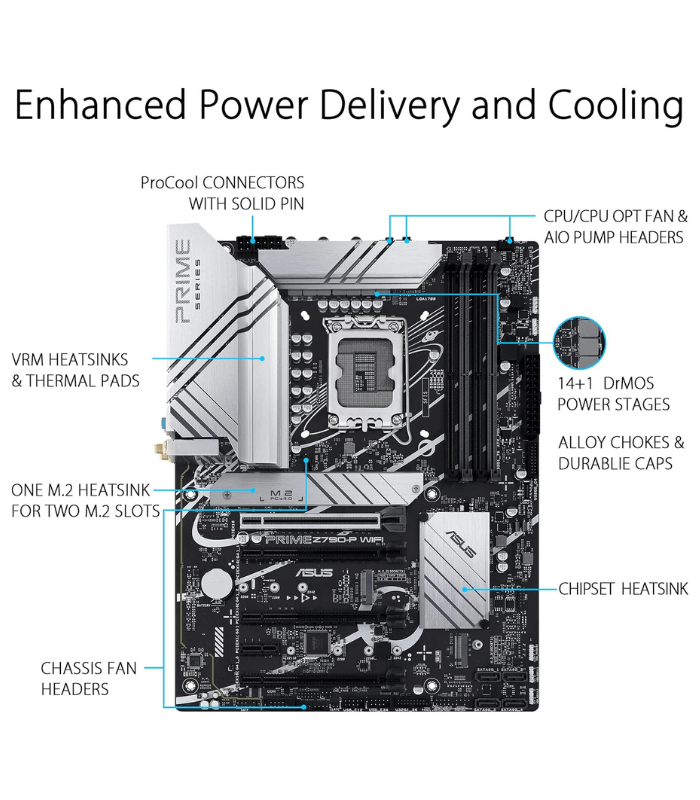

2. Optimized Power Delivery:
   • 14+1 DrMOS Power Stages: Premium VRM design with high-quality components for stable overclocking and efficiency.
   • Comprehensive Cooling: Large VRM heatsinks, M.2 thermal pads, and hybrid fan headers for optimal thermal control.

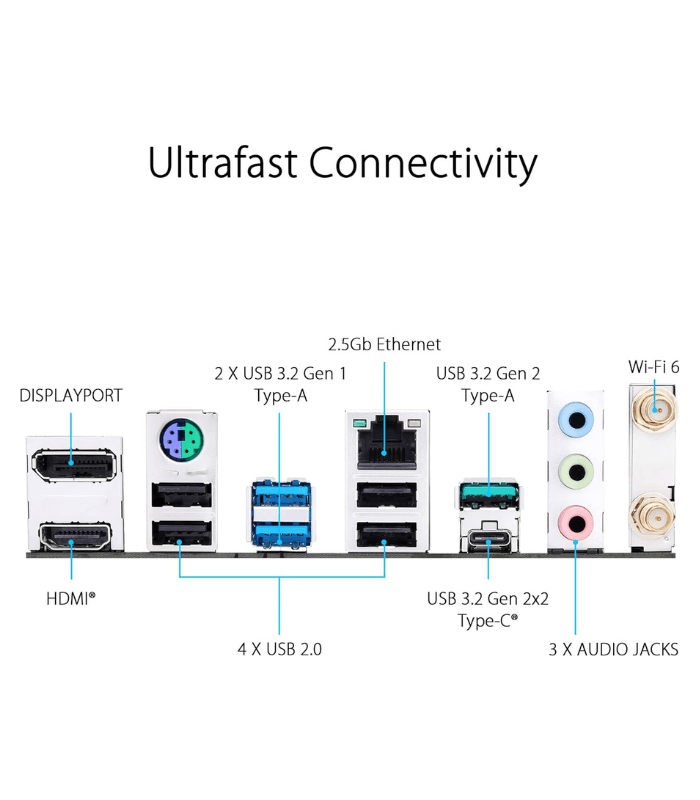

3. Lightning-Fast Connectivity:
   • WiFi 6 (802.11ax): Ultra-fast wireless speeds up to 2.4 Gbps with Bluetooth 5.3 for seamless peripherals.
   • 2.5G Ethernet: Lag-free online gaming and 4K streaming with wired reliability.
   • USB 3.2 Gen 2×2 Type-C®: 20 Gbps transfers for external storage and devices.
4. DDR5 Memory Support:
   • 6400+ MHz (OC): Quad DIMM slots with ASUS OptiMem III for reduced interference and higher overclocking potential.
   • XMP 3.0 Profiles: One-click optimization for DDR5 performance tuning.
5. Expansive Storage Options:
   • 4x M.2 Slots (PCIe 4.0): Including one PCIe 5.0 x4 slot for blistering NVMe SSD speeds.
   • 4x SATA 6 Gbps: Support for HDDs, SSDs, and RAID configurations.
6. Smart Customization & Control:
   • ASUS AI Suite 3: Automate overclocking, cooling, and energy efficiency with intuitive software.

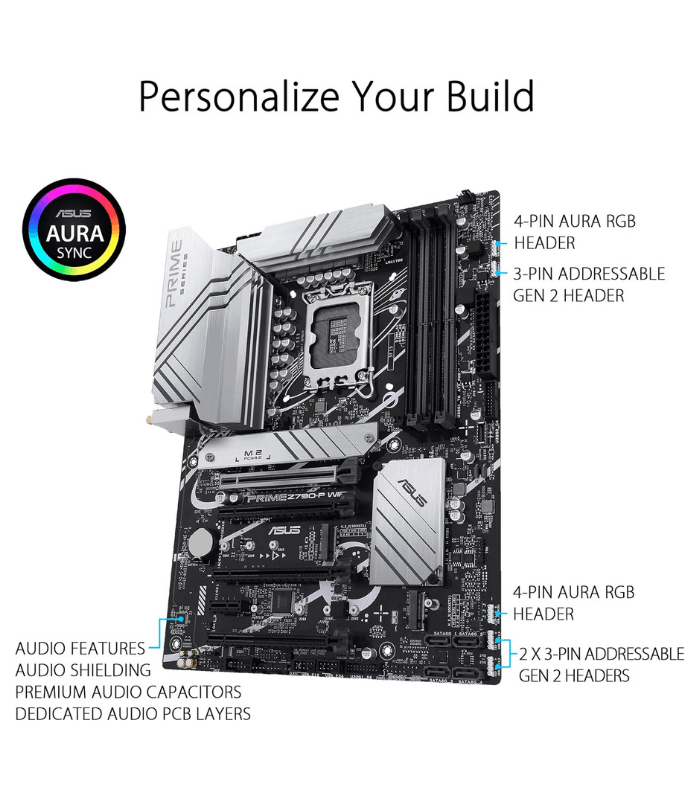

   • Aura Sync RGB: Sync onboard RGB lighting and compatible peripherals for a unified aesthetic.
   • Fan Xpert 4: Fine-tune fan curves via BIOS or desktop software.

Technical Specifications:

• Model: 90MB1CJ0-M1EAYO
• Form Factor: ATX (30.5 cm x 24.4 cm)
• Socket: LGA 1700
• Chipset: Intel® Z790
• Memory: 4x DDR5 DIMM (Up to 128GB, 6400+ MHz OC)
• Expansion Slots:
  • 1x PCIe 5.0 x16
  • 1x PCIe 4.0 x16 (x4 mode)
  • 2x PCIe 3.0 x1
• Storage:
  • 4x M.2 (1x PCIe 5.0, 3x PCIe 4.0)
  • 4x SATA 6 Gbps
• USB Ports:
  • Rear: 1x USB 3.2 Gen 2×2 Type-C®, 3x USB 3.2 Gen 2, 4x USB 3.2 Gen 1
  • Front: 1x USB 3.2 Gen 1 header, 2x USB 2.0 headers
• Networking: WiFi 6, 2.5G Ethernet, Bluetooth 5.3
• Audio: Realtek® ALC897 codec with DTS Sound Unbound™

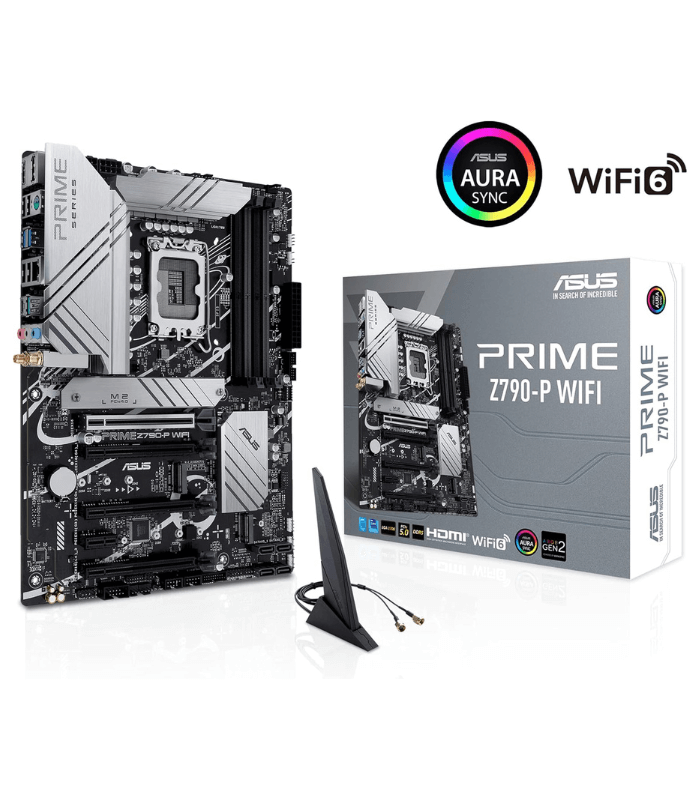

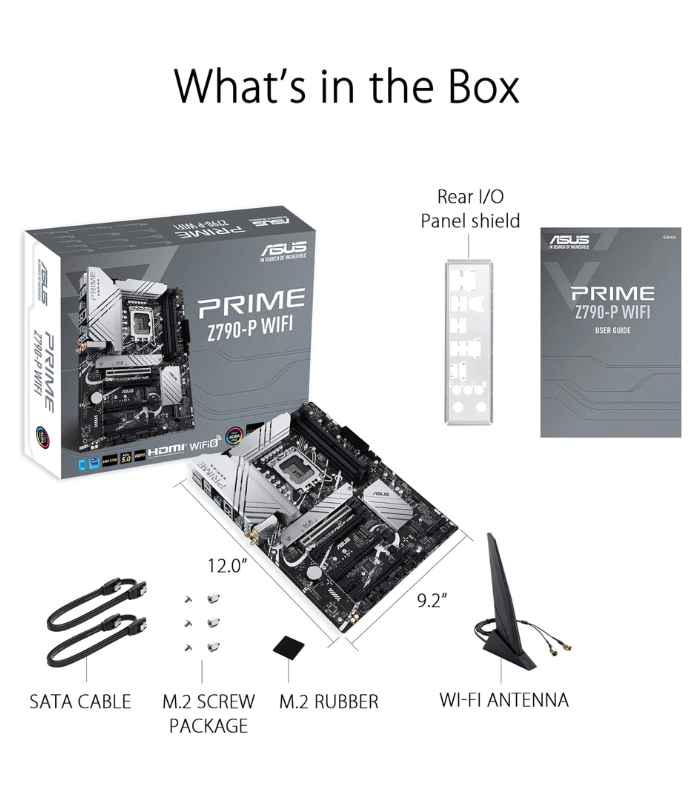

What’s Included:

• ASUS Prime Z790-P WiFi Motherboard
• WiFi Antenna
• SATA 6 Gbps cables (x2)
• M.2 Q-Latch screws
• User manual, driver DVD, and I/O shield

Why Choose the ASUS Prime Z790-P WiFi?

• Future-Ready Build: PCIe 5.0 and DDR5 support for next-gen hardware.
• Pro-Level Stability: Military-grade TUF components and 24/7 durability testing.
• Easy DIY Builds: Q-Latch, Q-Slot, and BIOS FlashBack™ for hassle-free assembly.
• Smart Home Integration: Use your PC as a hub for IoT devices via WiFi 6 and Bluetooth.

Build Smarter. Perform Better.

The ASUS Prime Z790-P WiFi is more than a motherboard—it’s the foundation for a PC that excels in gaming, creativity, and productivity. Optimized for Intel’s latest CPUs and loaded with features, it’s engineered to keep you ahead of the curve.

Order Now and Elevate Your Build.
