Logitech Extend – Black

Logitech Extend – Black | BYOD Meeting Room Connection Kit

The Logitech Extend (952-000199) is a BYOD (Bring Your Own Device) connection solution designed for modern video conferencing rooms. It allows users to connect a compatible laptop to the room’s conferencing equipment through a single USB-C cable and run meetings using their preferred conferencing platform.

Featuring table-side and display-side connection units, Logitech Extend simplifies meeting room connectivity while supporting compatible conference cameras, displays and USB peripherals. Its extended cabling capabilities make it suitable for larger meeting rooms, collaborative workspaces and professional conference environments.

Key Features

Single USB-C Cable Connectivity

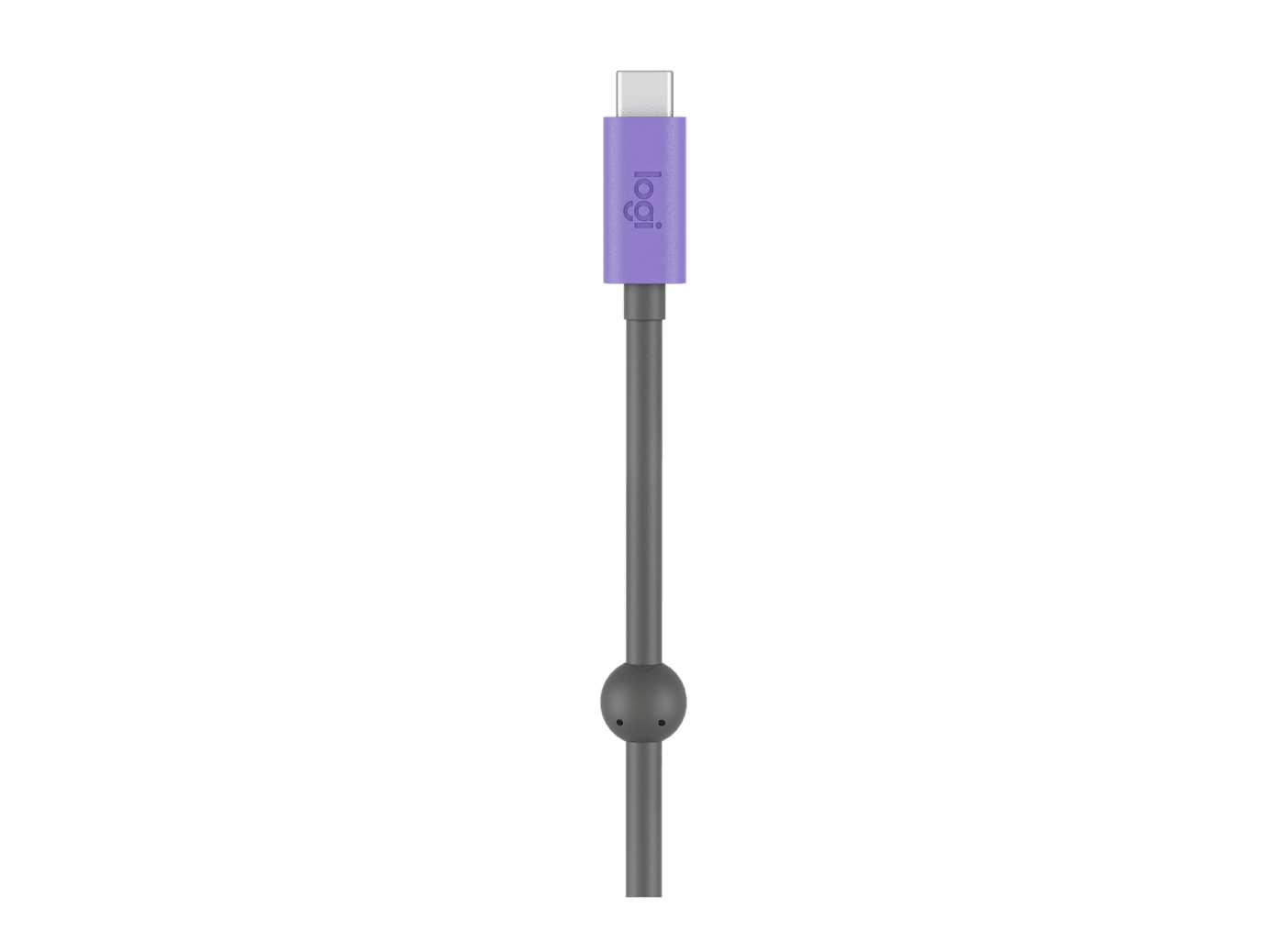

Logitech Extend provides a convenient way to connect a compatible laptop to a meeting room’s conferencing equipment using a single USB-C cable. Users can join meetings through their preferred video conferencing platform without requiring multiple connection cables or additional adapters for the standard supported setup.

BYOD Meeting Room Support

The system is designed for Bring Your Own Device meeting rooms and supports compatible Logitech conferencing equipment. Users can connect their own devices to access the room’s supported camera and display setup, making it suitable for flexible meeting environments.

4K Display Connectivity

The display-side unit features HDMI 2.0 connectivity with support for resolutions up to 4K UHD at 60 Hz and 4:4:4 chroma. This provides high-resolution display connectivity for compatible meeting room displays and conferencing configurations.

Flexible USB and Network Connections

The display-side unit includes two USB 2.0 Type-A ports, an HDMI connection and an RJ45 connection to the table-side unit. The table-side unit provides a secured USB-C connection for the user’s laptop, an optional USB-C power input and an RJ45 connection for communication between the two units.

Extended Cable Reach

Logitech Extend supports long-distance connections between its table-side and display-side units using compatible category cabling. The connection can extend up to 100 metres with Cat6a cable or up to 60 metres with Cat5e/6 cable, allowing flexible installation in larger meeting rooms. Category cabling is supplied separately.

Optional Power Delivery

When connected to a suitable 100W USB-C power adapter, the table-side unit can deliver up to 100W of power to a compatible laptop or mobile device. This helps reduce the need for a separate device power connection during supported meeting room setups.

Centralised Device Management

Logitech Extend supports Logitech Sync device management for monitoring connectivity and managing supported configurations. Firmware updates and management options depend on the conferencing equipment and room setup.

Flexible Installation and Cable Management

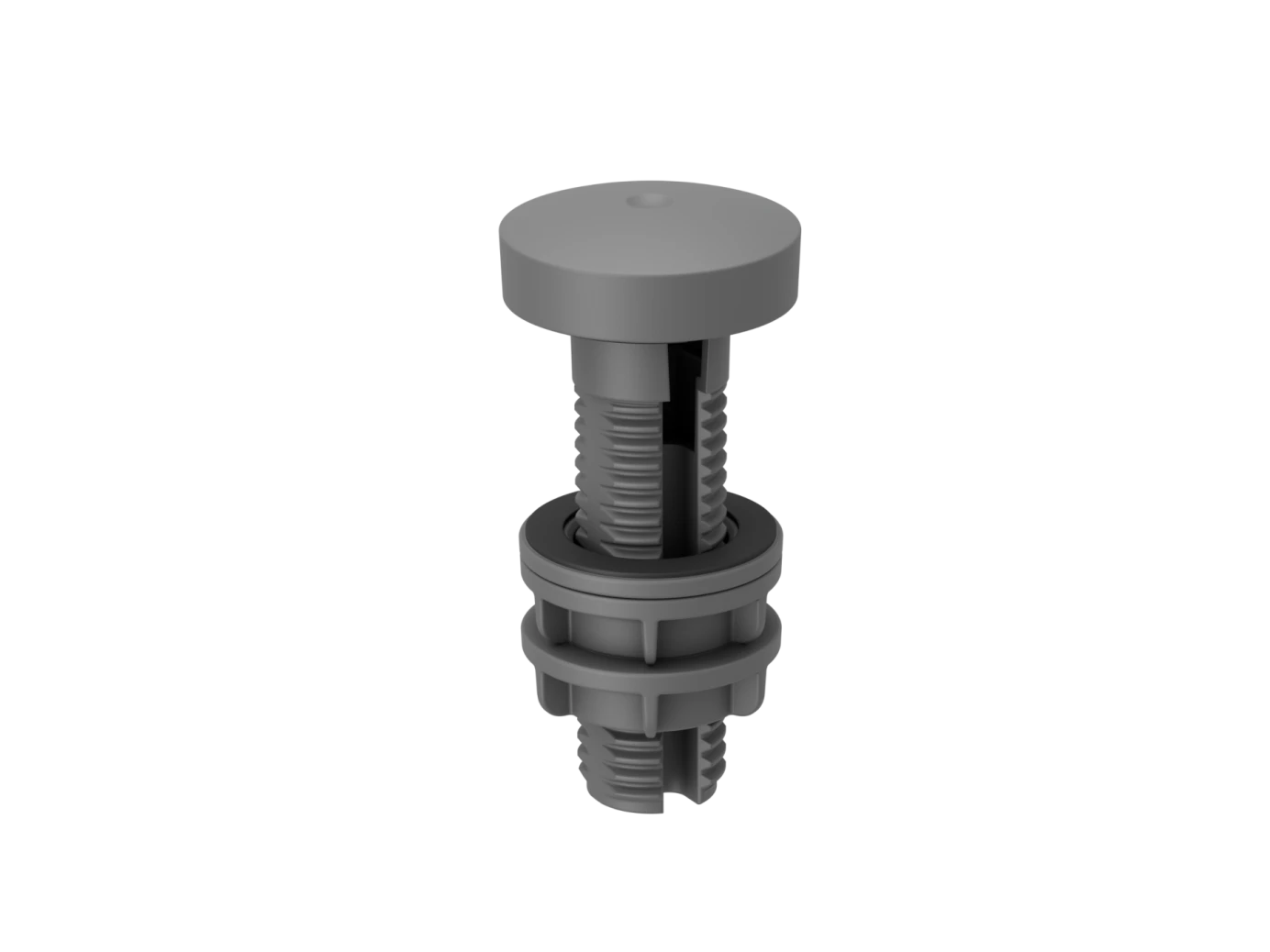

The system supports 100 x 100 mm VESA mounting and includes mounting hardware for installation on suitable surfaces. An included magnetic dock helps keep the USB-C cable accessible, while the supplied grommet adapter allows the cable to be routed neatly through a meeting table.

Specifications

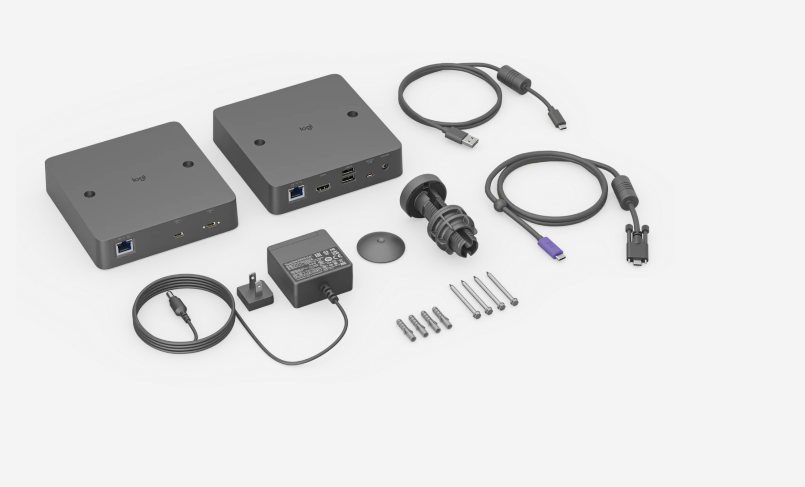

What’s in the Box?

• Display-side (RX) box
• Table-side (TX) box

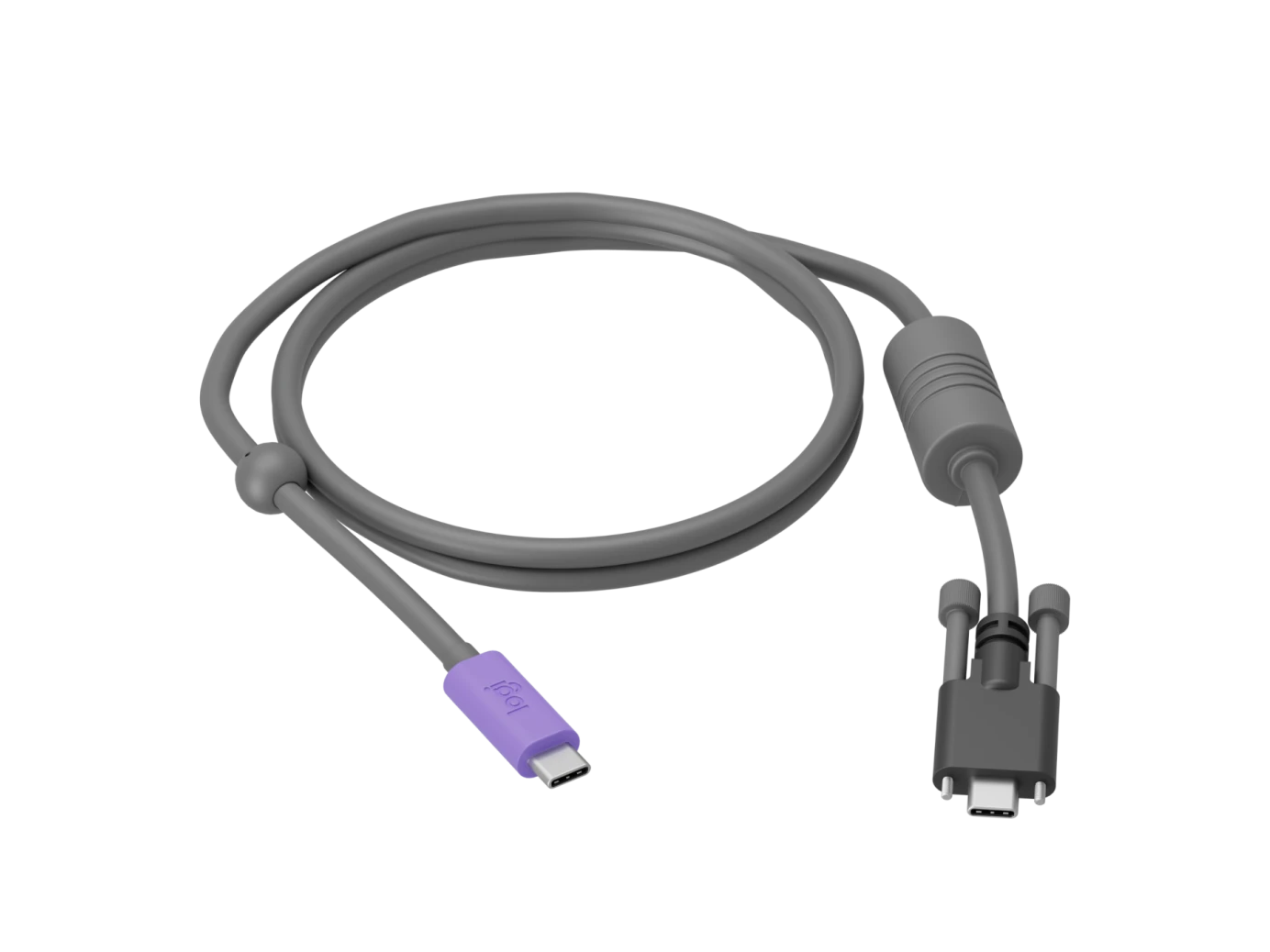

• USB-C to USB-C cable
• USB-A to Micro USB cable
• Power supply
• Mounting hardware
• 25.4 mm grommet adapter
• Magnetic dock
• User documentation

Why Choose Logitech Extend?

• Simple Connections: Connect a compatible laptop to a meeting room setup using a single USB-C cable.
• High-Resolution Display: Supports compatible HDMI displays up to 4K UHD at 60 Hz.
• Flexible Installation: Category cabling supports long-distance connections between the two units.
• Professional Meeting Rooms: Designed for BYOD collaboration and compatible video conferencing systems.
• Optional Power Delivery: Provides up to 100W of power when used with a suitable USB-C power adapter.
• Neat Cable Management: Includes a magnetic cable dock and grommet adapter for a cleaner meeting table.
• Device Management: Supports Logitech Sync for compatible management workflows.

Simplify Your Meeting Room Connectivity

Make meeting room collaboration easier with the Logitech Extend BYOD Connection Kit. Its single USB-C laptop connection, 4K display support, flexible cabling and compatibility with selected Logitech conferencing systems make it a practical solution for modern business meeting rooms.
